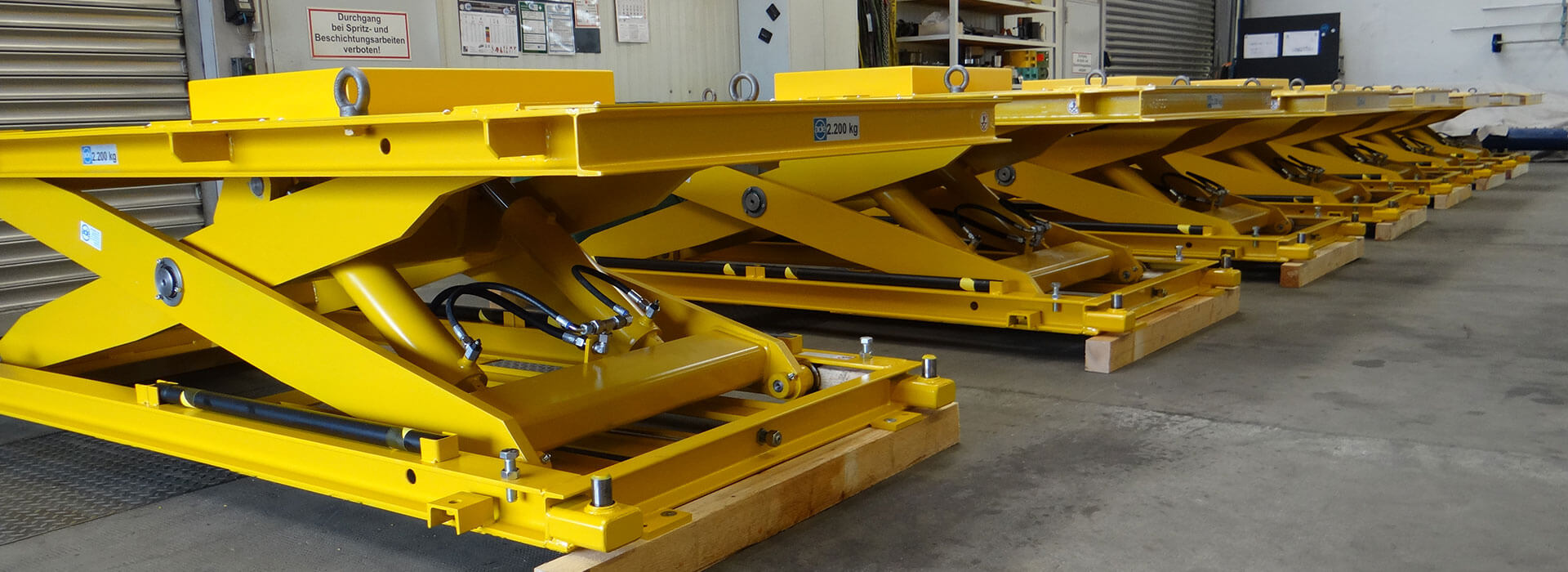

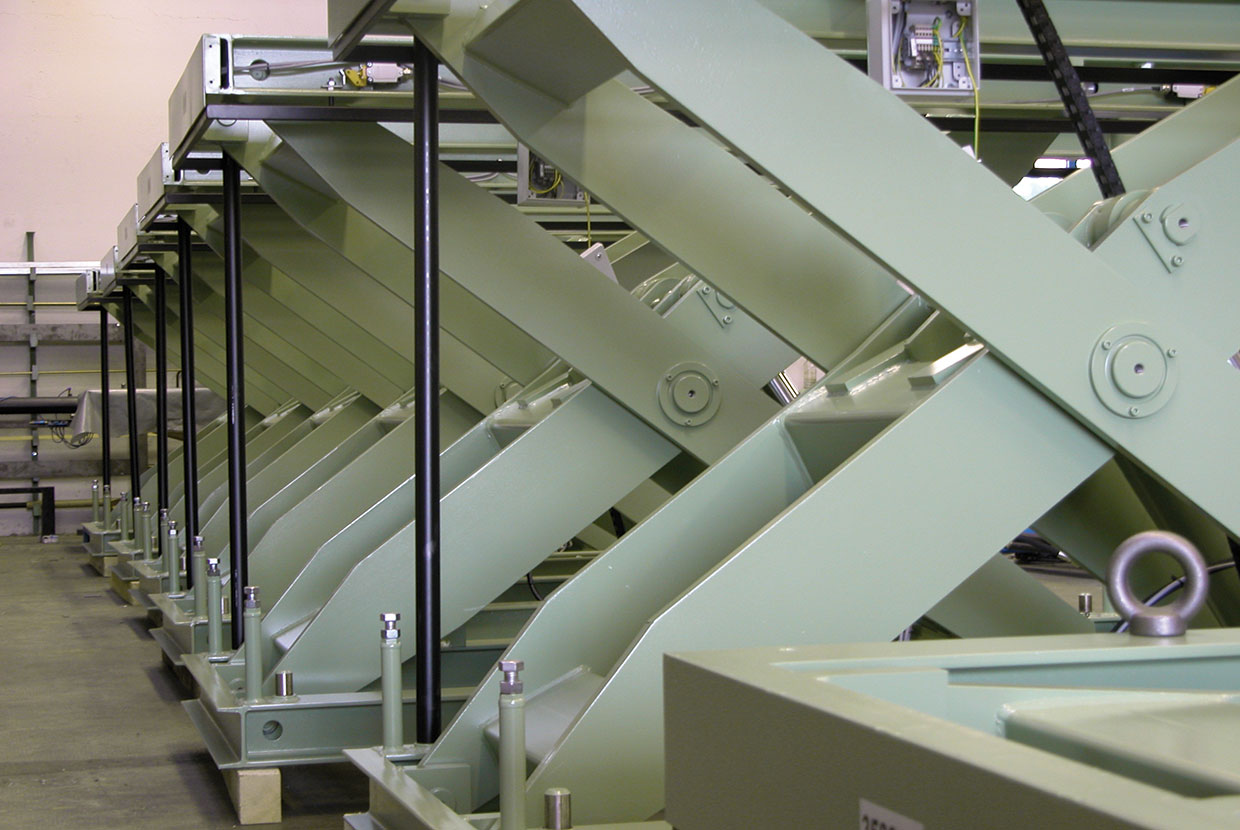

Heavy-duty scissor lifts
- up to 100 tons lifting capacity
- up to 8 m lift travel
Lift tables for more challenging tasks, extreme operations, harsh continuous operation and for the heavy plant engineering, with high switch frequency This product series is adjusted customer-specific exactly to the operation case and optimised. In this way, the greatest possible reliability, the greatest possible lifespan as well as the highest stability are achieved.
- Solid welded construction

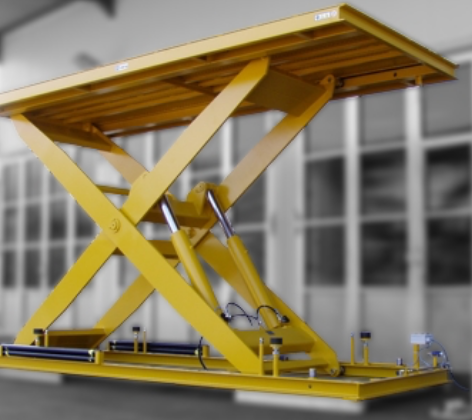

- Design as single scissors, double vertical scissors ans double horizontal scissors.
- The scissors are made of full material.
- The lower and upper frames are executed as rigid welded construction (IPB Profile).
- Adjustable supports, to adjust the height of the lift table.
- Installation option floor-mounted or pit installation
- Maintenance work in a secure environment are guaranteed by mounted maintenance supports
- Upon request, ALU foot protection contact edge safety-bar, all sides
- Platform covering made of robust flat plate
- Conservation / lacquering
all steel components cleaned
- Two component polyurethane top-coat
- Standard colour hue RAL 1004 (yellow gold) - All bearing points are lubricated for life. The centre scissors bearing as well as the fixed bearing
carried out with maintenance-free spherical plain bearings, the roller with maintenance-free grooved
ball bearing. - Hanging possibility in centre of gravity for transportation by crane
